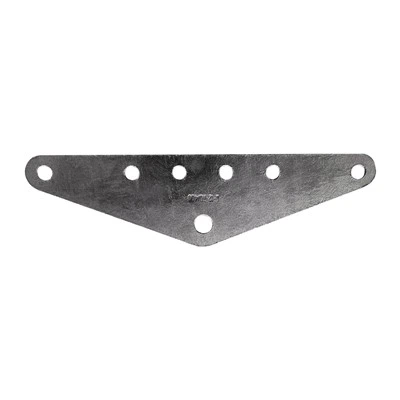

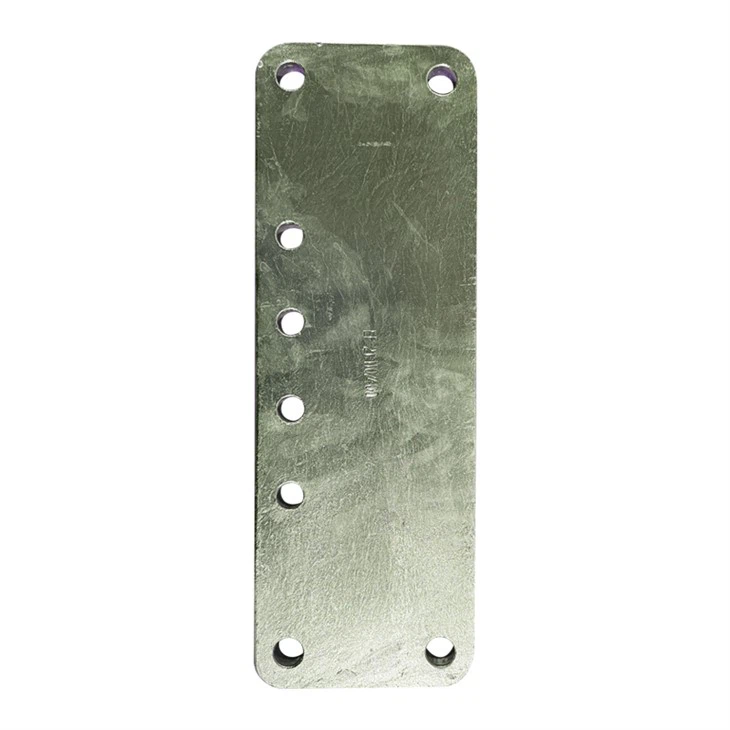

Multi Hole Yoke Plate tus qauv tsim qhov tseem ceeb nyob rau hauv nws plaub lossis ntau dua qhov tseeb machined mounting qhov. Cov qhov no tuaj yeem hloov kho kom tau raws li cov neeg siv xav tau, daws qhov teeb meem ntawm kev sib txuas ntau yam hauv ntau cov lus qhia, uas yog tsis yooj yim sua nrog cov pa yoke phaj. Los ntawm qhov sib npaug faib cov neeg xyuas pib nro thiab ib puag ncig loads rau ntau cov hlua insulator lossis ntau lub nodes, nws yoog rau kev teeb tsa thiab kev ua haujlwm ntawm cov kab sib txuas sib txuas.
Multi Hole Yoke Plate tus qauv tsim ua ntej yog "kev sib npaug ntawm kev ntxhov siab, kev teeb tsa yooj yim, thiab muaj zog yoog raws." Nws feem ntau suav nrog cov qauv phaj, qhov tsim, thiab kev hloov ntawm lub kaum sab xis. Cia peb nthuav dav:
Plate Structure: Ib lub phaj steel yog txiav thiab forged. Lub phaj thickness yog tsim raws li qhov ntsuas load, xws li ntawm 10mm mus rau 50mm. Cov duab feem ntau yog cov duab plaub, uas ua rau cov qauv compact thiab cov kev ntxhov siab tsis sib xws, tiv thaiv cov phaj tawg vim muaj kev ntxhov siab.
Qhov Tsim: Lub phaj nta tsawg kawg yog plaub lub qhov, muab tso rau hauv ib qho, ob npaug, lossis ntau- kab teeb tsa, kho tau raws li qhov yuav tsum tau muaj kev sib txuas. Qhov diameters yog standardized, nrog kam rau ua tswj nyob rau hauv ± 0.5mm. Lub qhov phab ntsa yog polished, du, thiab burr-dawb, ua kom yooj yim rau kev ntxig tus pins thiab bolts thaum txo qhov hnav ntawm cov khoom sib txuas.
Rounded Corner Transitions: Ob lub phaj npoo thiab lub qhov npoo yog sib npaug (voj vojvoog loj dua lossis sib npaug li 5 hli). Qhov no tiv thaiv cov npoo ntse los ntawm khawb cov neeg ua haujlwm thiab cov xov hlau, txhim kho kev tsim kho kev nyab xeeb. Nws kuj tseem txo cov kev ntxhov siab, tiv thaiv cov kab nrib pleb uas tshwm sim los ntawm lub sijhawm ntev - kev ntxhov siab thiab ua kom cov khoom lag luam txuas ntxiv.
Multi Hole Yoke Phaj yog sib xws nrog 110kV-1000kV kis tau tus mob kab. Tus naj npawb ntawm qhov, qhov taub, cov khoom siv, thiab kev kho deg tuaj yeem raug kho raws li tus neeg siv xav tau. Txhawm rau ua kom yooj yim rau cov neeg siv xaiv, tam sim no peb yuav ua tib zoo saib ntawm cov specifications thiab cov qauv.
|
Qhov Quantity |
Lub qhov taub |
Phaj Thickness |
Rated Breaking Strength |
Siv tau Voltage Level |
Khoom siv |
Kev kho saum npoo |
Cov yam ntxwv ua haujlwm |
| 4 qhov |
20 hli |
12 hli |
200kN ib |
110 kV-220 kV |
Q235 |
Kub-dip galvanizing | Compact qauv, uniform kev ntxhov siab faib, thiab zoo heev corrosion kuj |
| 6 qhov | 24mm ib | 16 hli | 300kN ib |
220 kV-330 kV |
Q345 |
Kub-dip galvanizing | Saj zawg zog ntau- qhov layout, muaj zog load-cov kabmob muaj peev xwm, qhov tseeb qhov chaw, thiab lub kaum sab xis tsim |
| 8 qhov | 30 hli | 25 hli | 600kN ib |
500 kV-750 kV |
Siab - zog forged steel | Kub-dip galvanizing | With a dense structure, high tensile strength, strong wind and icing resistance, and precision drilling, the installation is seamless, reducing vibration and wear |
| 10 qhov | 40 mm | 40 mm |
1200 kN ib |
1000kV ua |
Siab - zog forged steel | Zinc - txhuas txheej | Muaj zog tiv thaiv corrosion, ntau- kab perforated tsim, tsis muaj kab nrib pleb, nyab xeeb thiab txhim khu kev qha |
Multi Hole Yoke Plate tuaj yeem tsim qee yam tsis xws luag tom qab siv ntev. Kev saib xyuas thiab kev saib xyuas sib txawv yog xav tau rau qhov txawv txav kom ntseeg tau tias qhov ntev - siv cov khoom.
Kev tsis xws luag
Rau cov xeb me me, kev tshem tawm hauv cheeb tsam, lossis cov ntsia hlau xoob me ntsis, peb tuaj yeem ntxuav ncaj qha, siv cov tshuaj tiv thaiv -corrosion txheej, zawm lub bolts, thiab ua haujlwm tsis tu ncua.
Qhov mob hnyav
Yog hais tias muaj xeb los yog nto micro- tawg tshwm, yuav tsum tau soj ntsuam tshwj xeeb thiab xeb thiab tiv thaiv corrosion. Fasteners yuav tsum tau hloov yog tias tsim nyog, thiab kev saib xyuas yuav tsum ua kom tiav nyob rau hauv ib lub sij hawm txwv.
Tseem ceeb tsis xws luag
Yog hais tias lub phaj qhia deformation, tawg, xeb nkag, ntsia liaj qhov rooj breakage, los yog lub zos overheating, peb yuav tsum tam sim ntawd kaw lub hwj chim thiab hloov tus quab thiab accessories.
